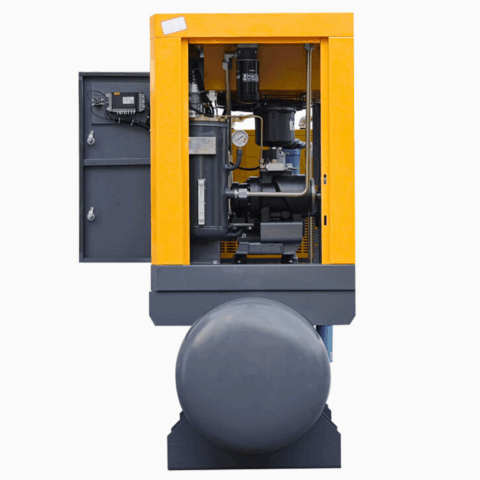

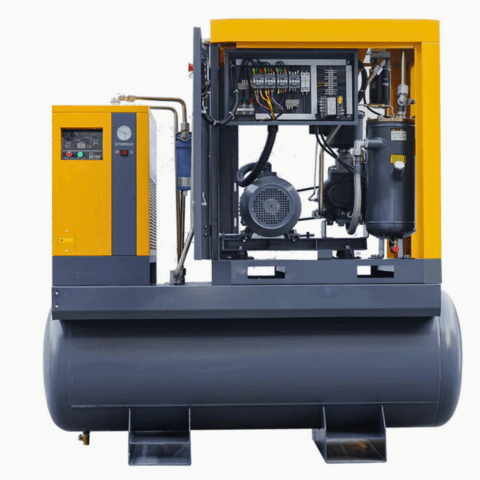

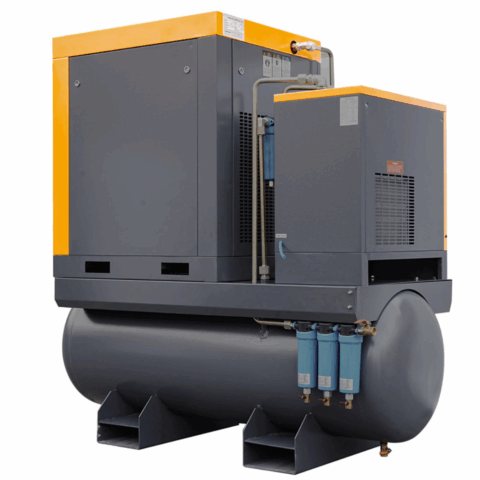

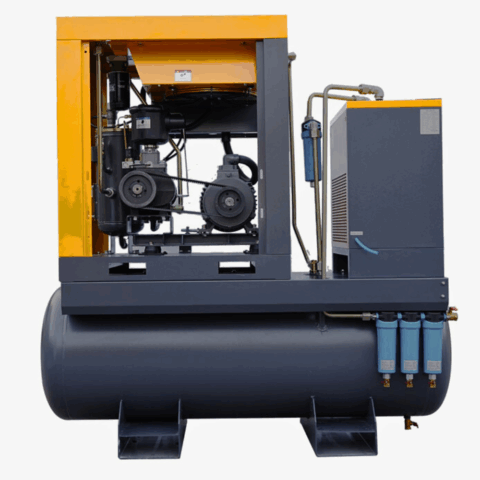

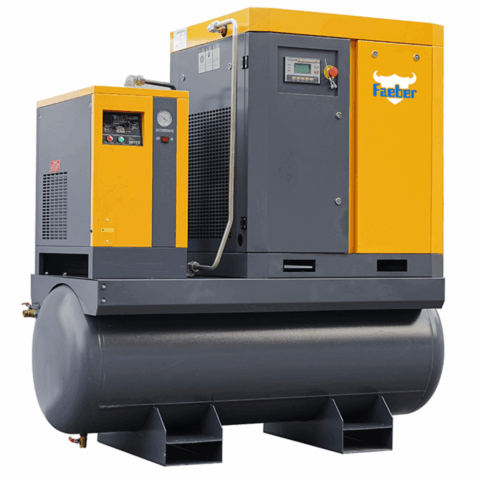

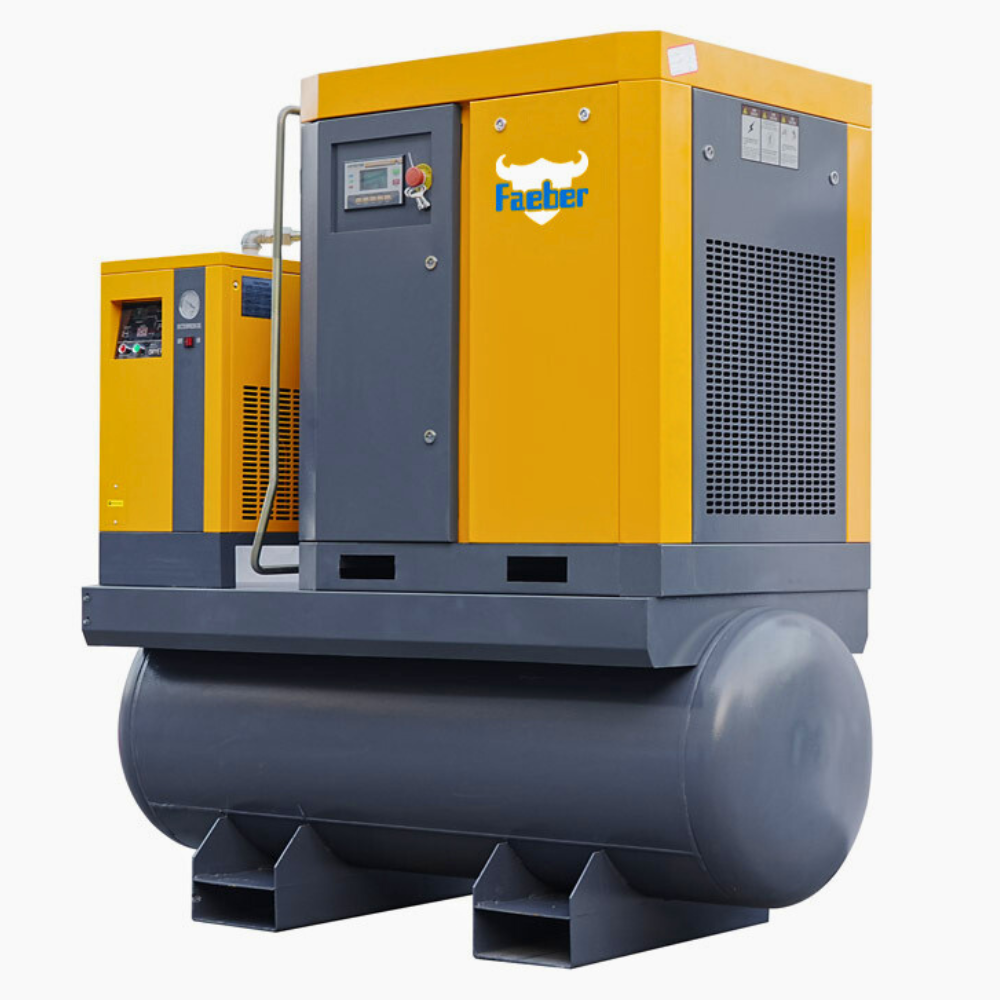

- Screw air compressor
Working pressure: 10bar
Motor: 7.5KW 10HP 380V/3PHASE/50HZ
Cooling method: Air cooling
Air end: IP54
Air flow: 0.9m³/min
Driven method: Belt driven type - Refrigerated Air Dryer
Air flow:1.5m³/min
Pressure: ≤13kg
Electricity: 220V/1PHASE/50HZ
Dew point:2-5℃ - Horizontal Air tank
Working pressure: 10bar
Volume:300L
with connection pipes - Pipeline Air Filter
Air flow:1.5m3/min
Filteration impurities:3 micron
Pressure: ≤13bar
Features:
- Plug and play: One stop installation provides total solution for customers application.
- Easy serviceability: Design in quick service access and easy maintenance.
- Easy installation: Compared with traditional split type air compressor, the integrated air compressor is simpler in installation process, reducing the installation workload and the required piping work.
Key Benefits:
- Cost saving: Complete system, no additional storage tank, no connection pipe installation cost.
- Indoor space saving: Screw compressor, refrigerant dryer and air receiver combination design for convenience the 1 station installation. Indoor space saving, compact compressed air system
- Reliability: Equipped with high-efficiency air-cooled permanent magnet variable frequency motor, it can operate reliably under high temperature condition
